Fitting is not guaranteed for each case.
Type C connector for media conversion will not be available.
However, when using the “replace clock kit”, Type C is not used because a synchronizable network switch is available.

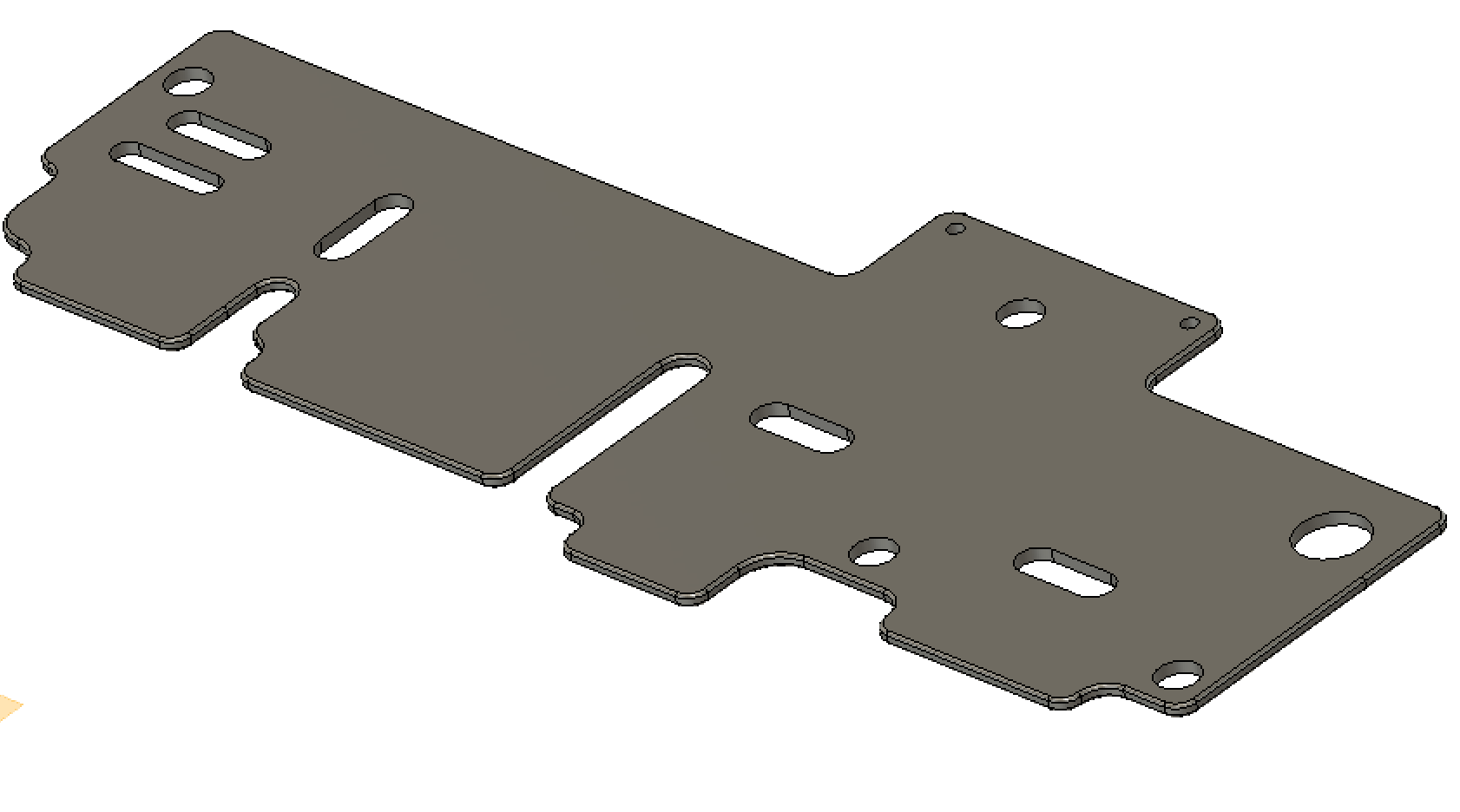

sheet metal
thermal pad 3M 6500H-2.0 220mm 220mm 2.0t
short parts
MSU-305.5-03
UUW-0306-15
BSB-315E
VAU-310
PanHead M3x5
PanHead M3x6
FlatHead M3x6
MSU-2009-03
MSU-310.5-03
ESU-2530

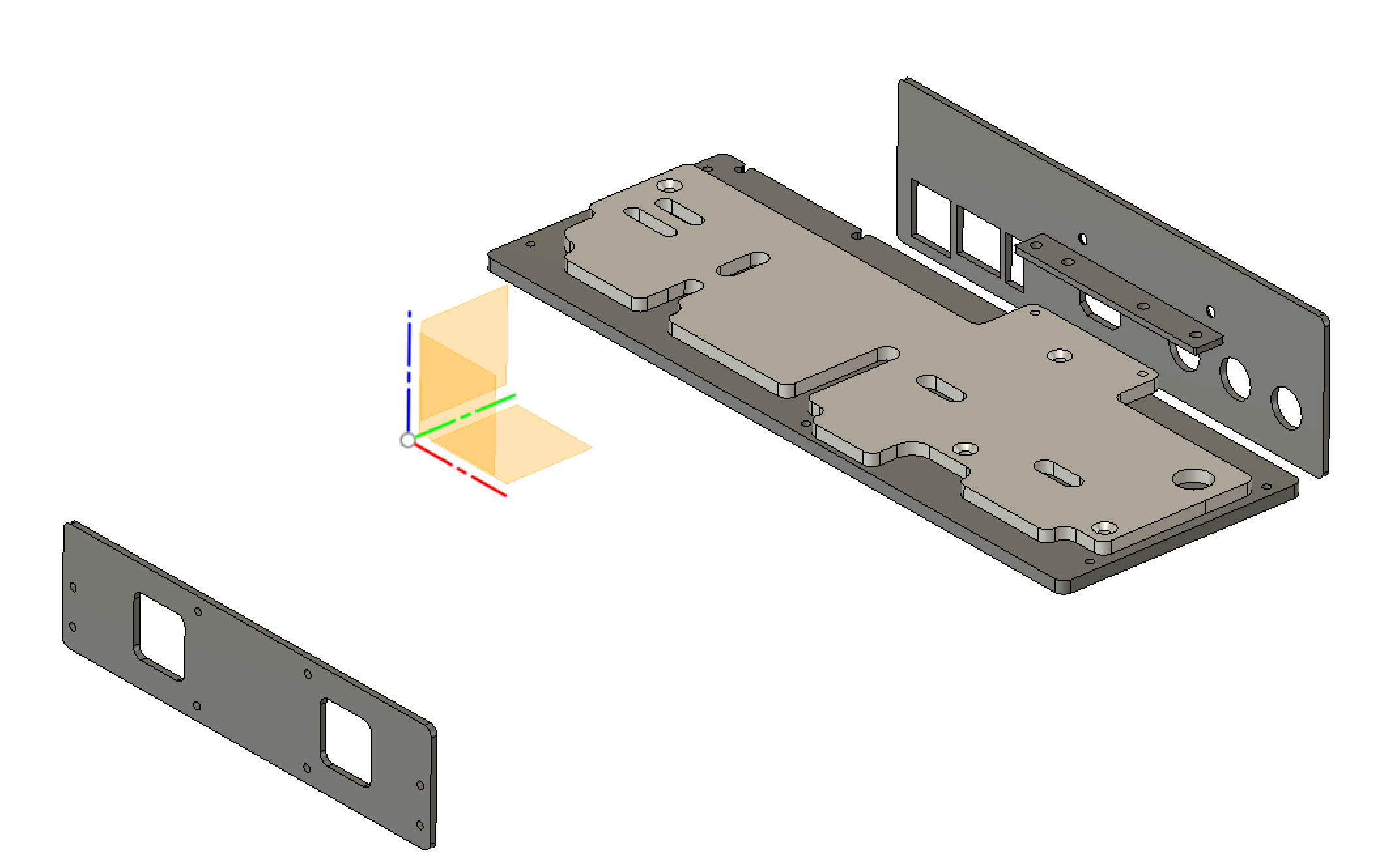

Join the two parts.

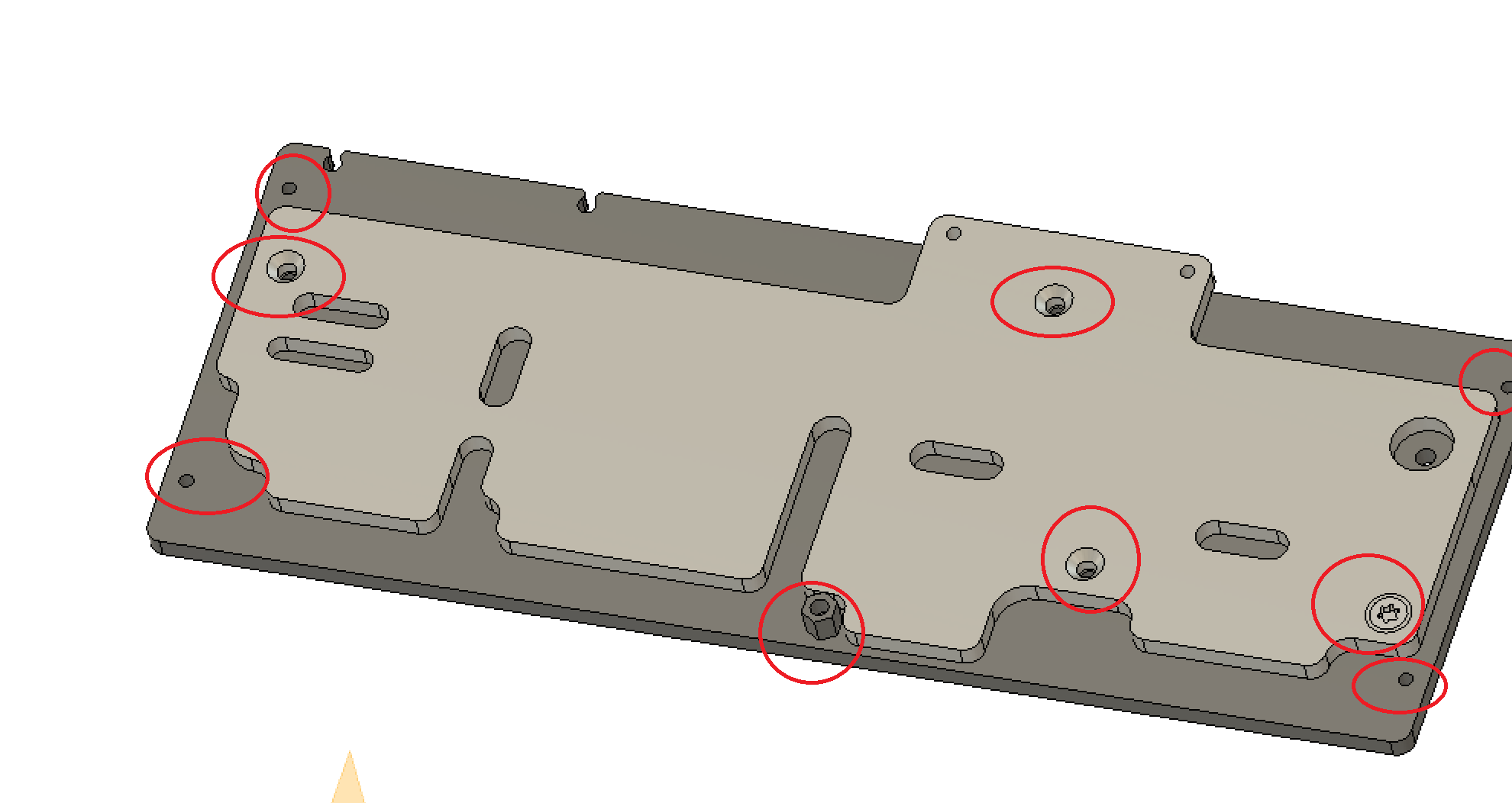

Install 5,5 mm spacers.
MSU-305.5-03
FlatHead M3x6

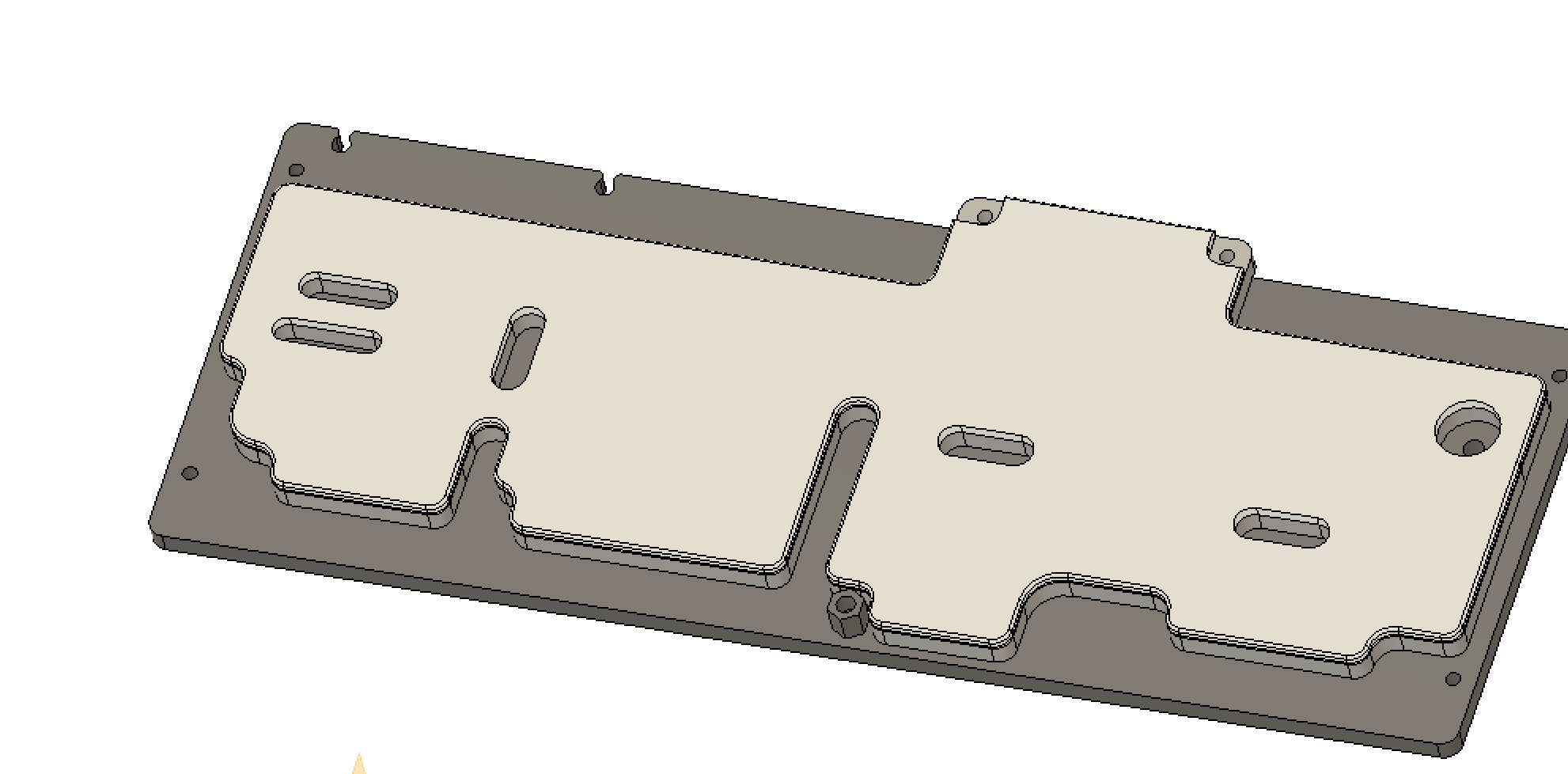

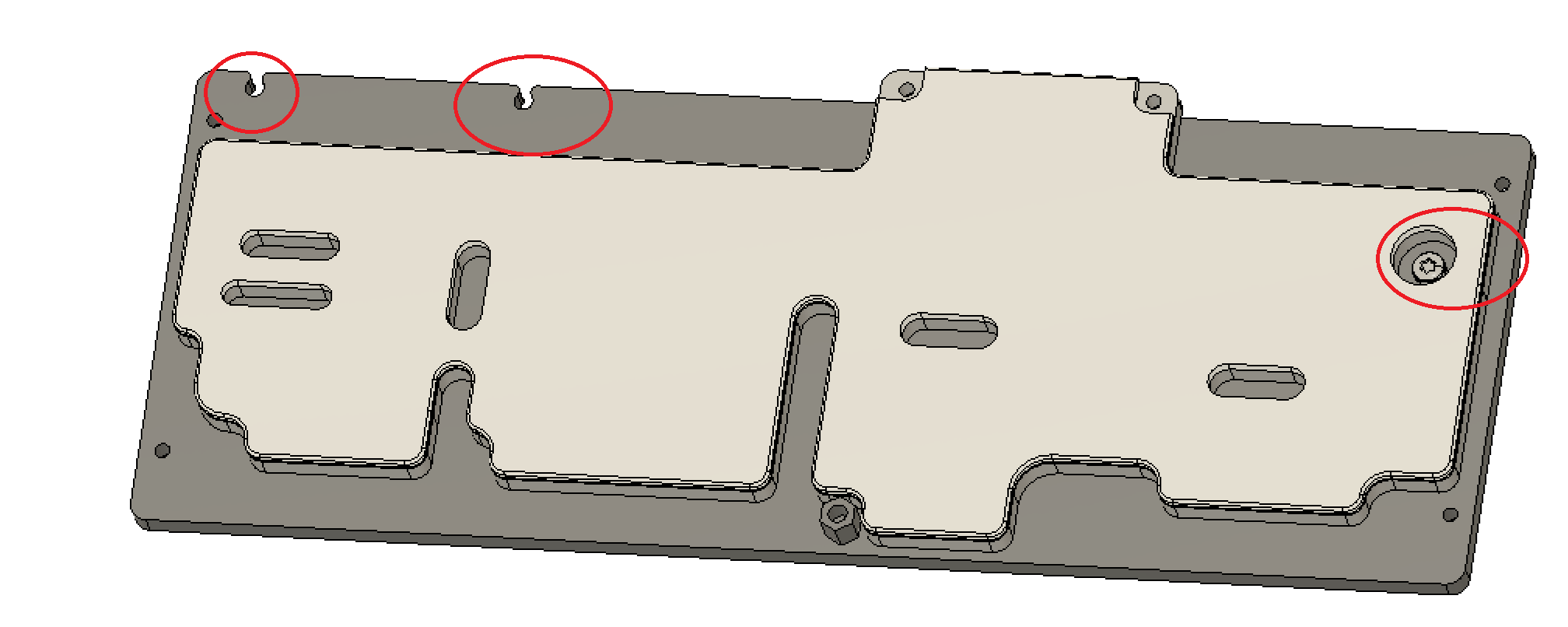

Stick and cut the thermal pad.
3M 6500H-2.0

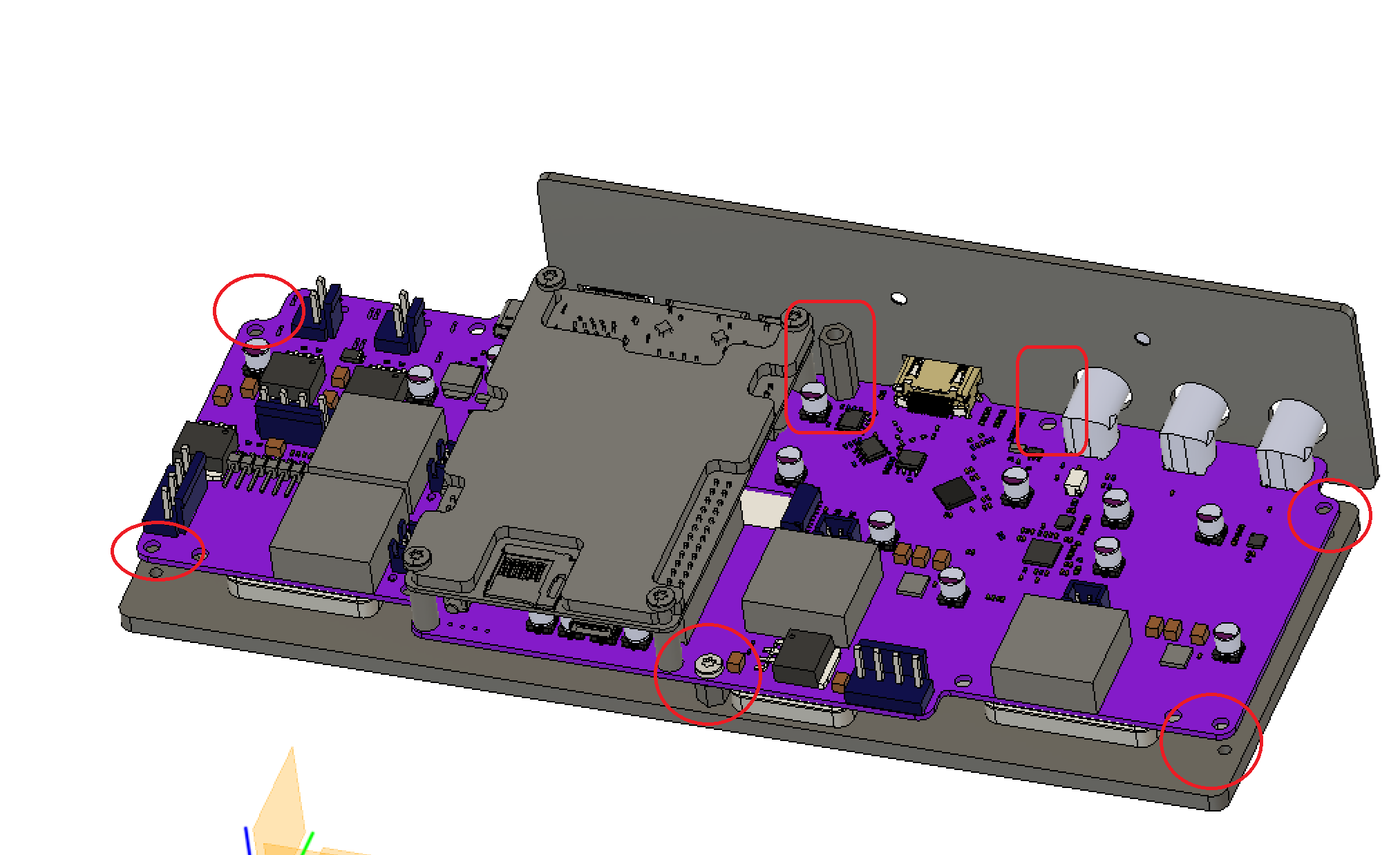

Remove the PC case motherboard mounting spacer and install it so that it adheres closely to the case.
UUW-0306-15
Place a 1.5 mm thick washer.
UUW-0306-15

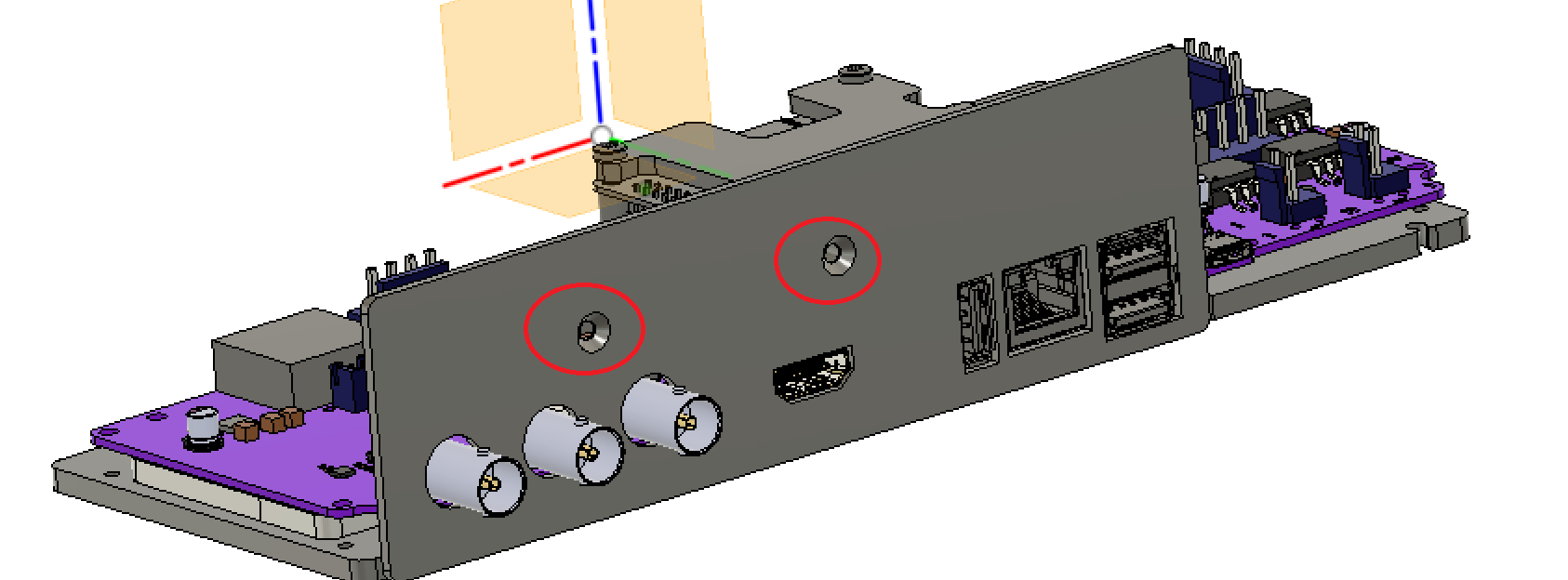

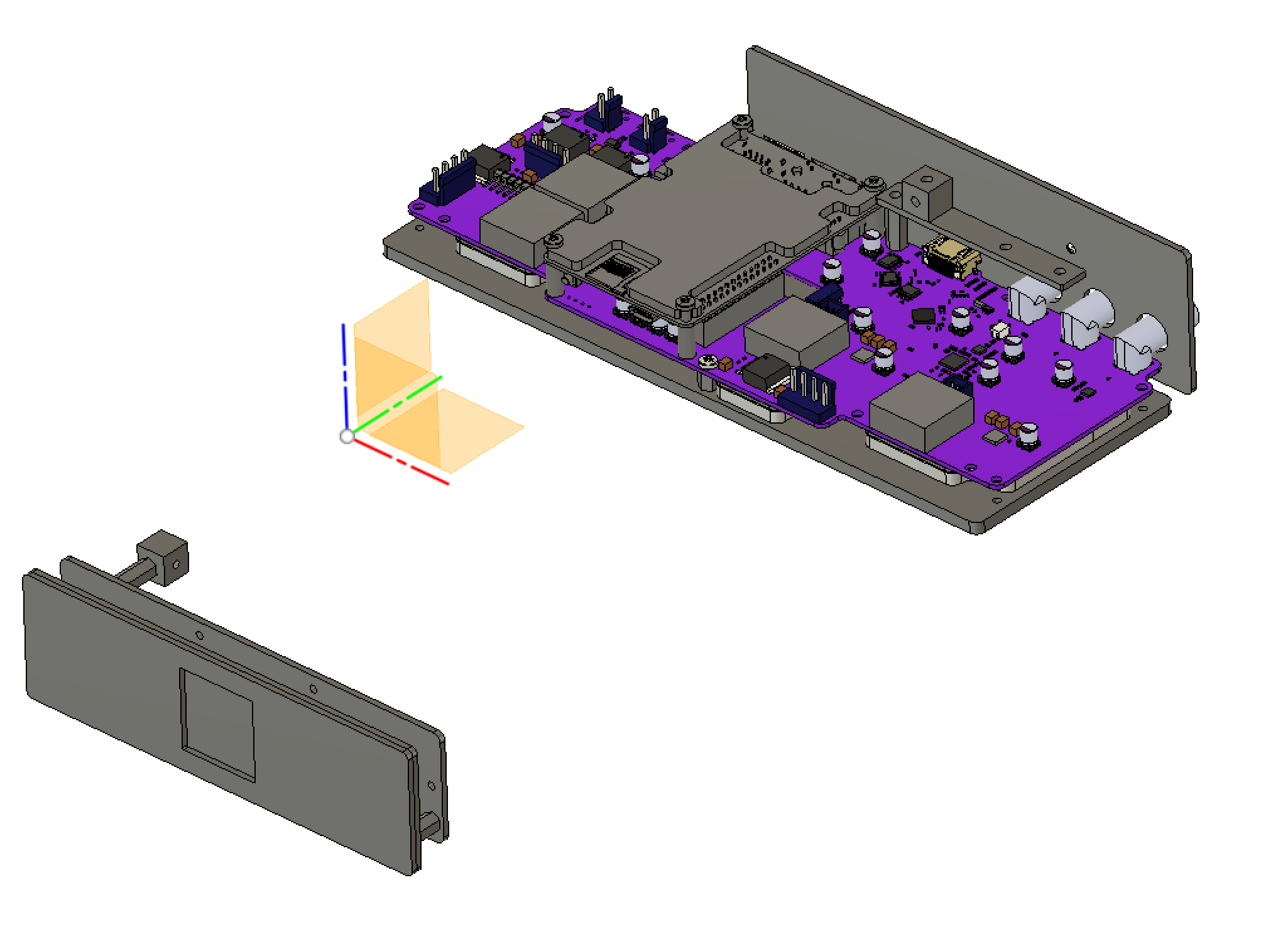

Fit DST-0.

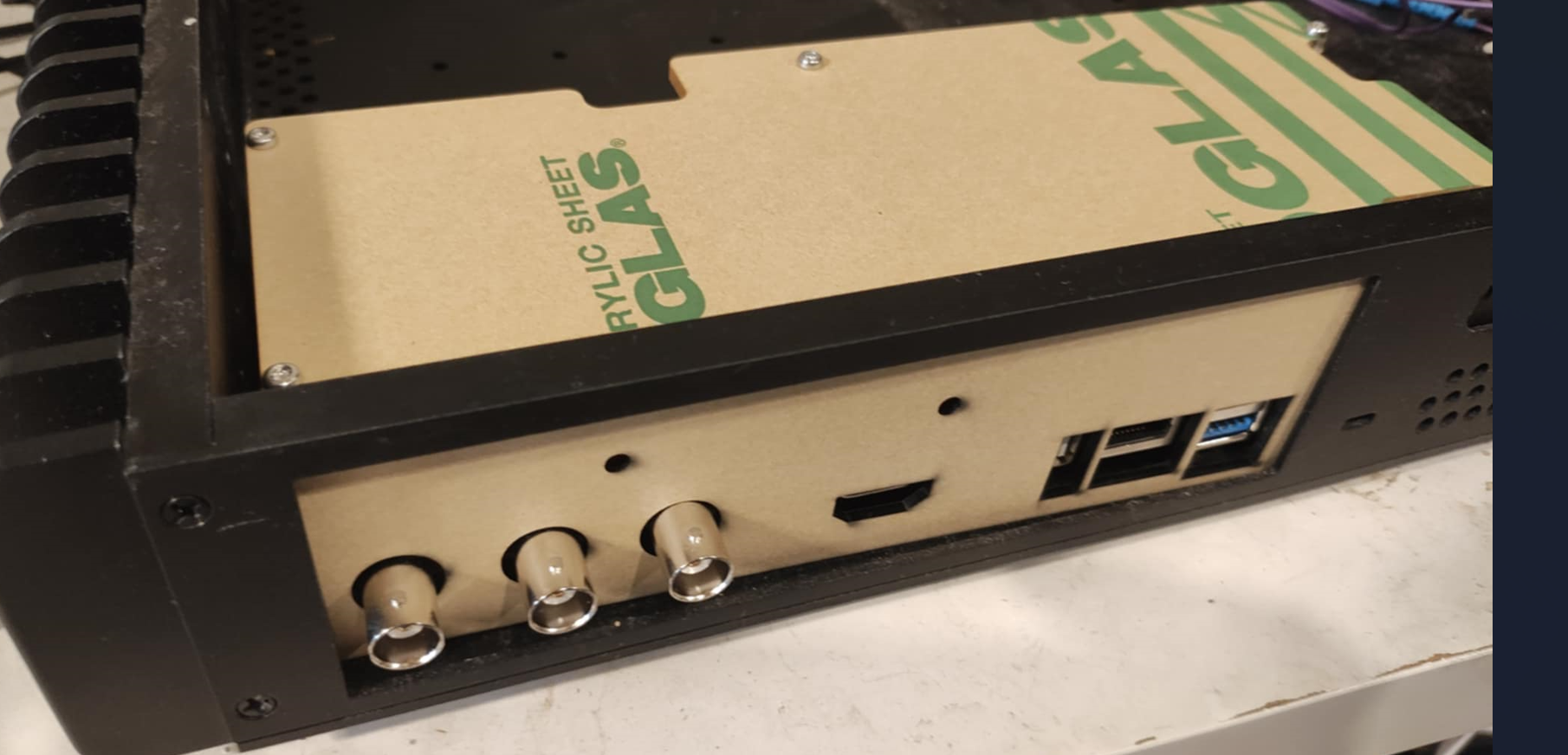

Insert the rear panel at the same time.
Do not let the washer move.
BSB-315E
PanHead M3x5
Connectors may interfere with each other depending on the generation of the board.
In such cases, please cut as much as possible.

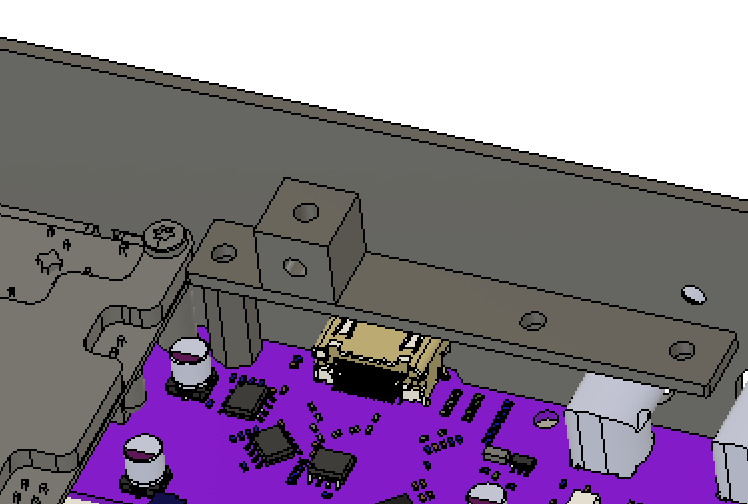

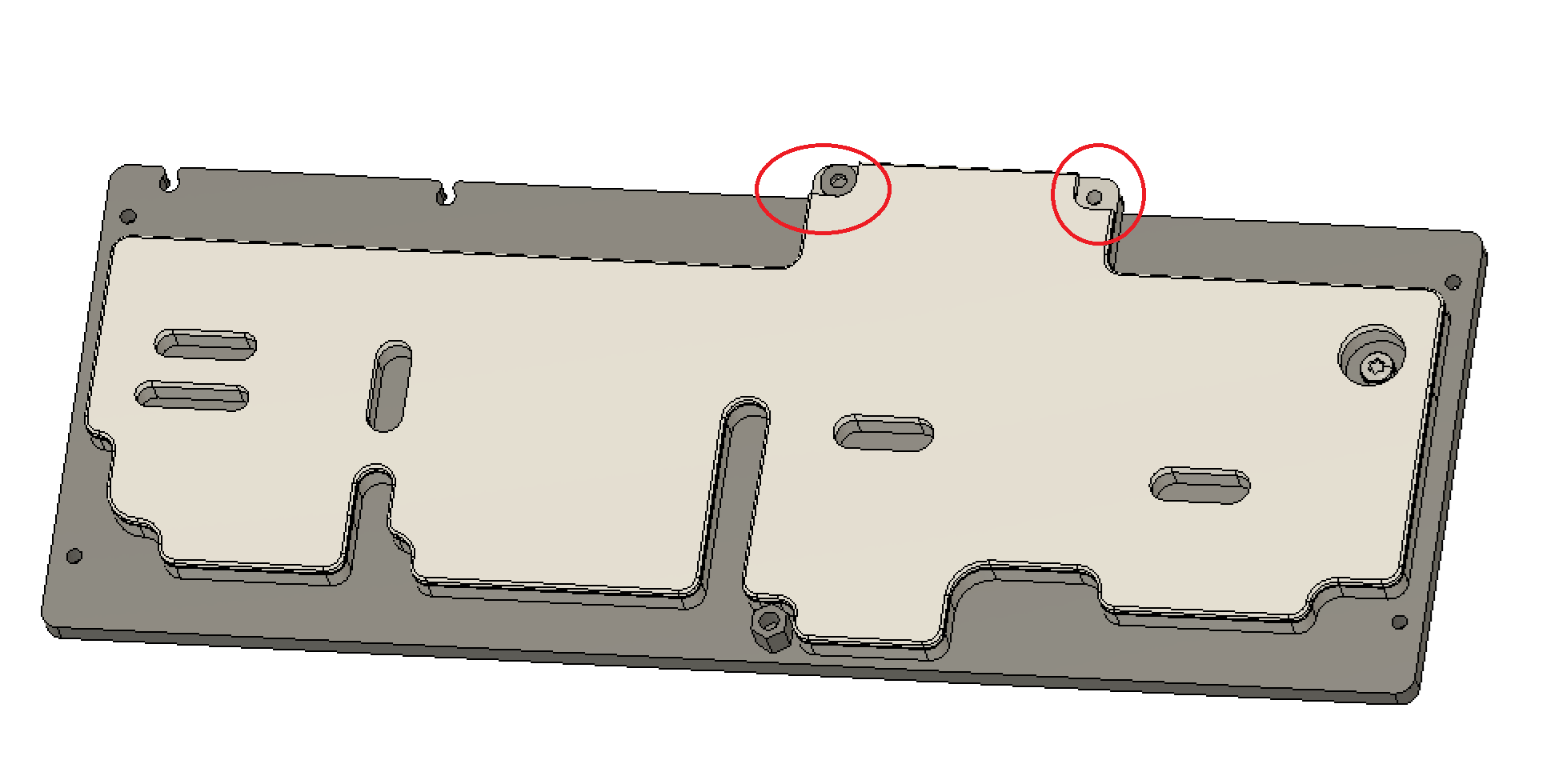

Attach the screw block to the support part.
Fit it in place.
VAU-310
PanHead M3x5
Fasten with screws.
FlatHead M3x6

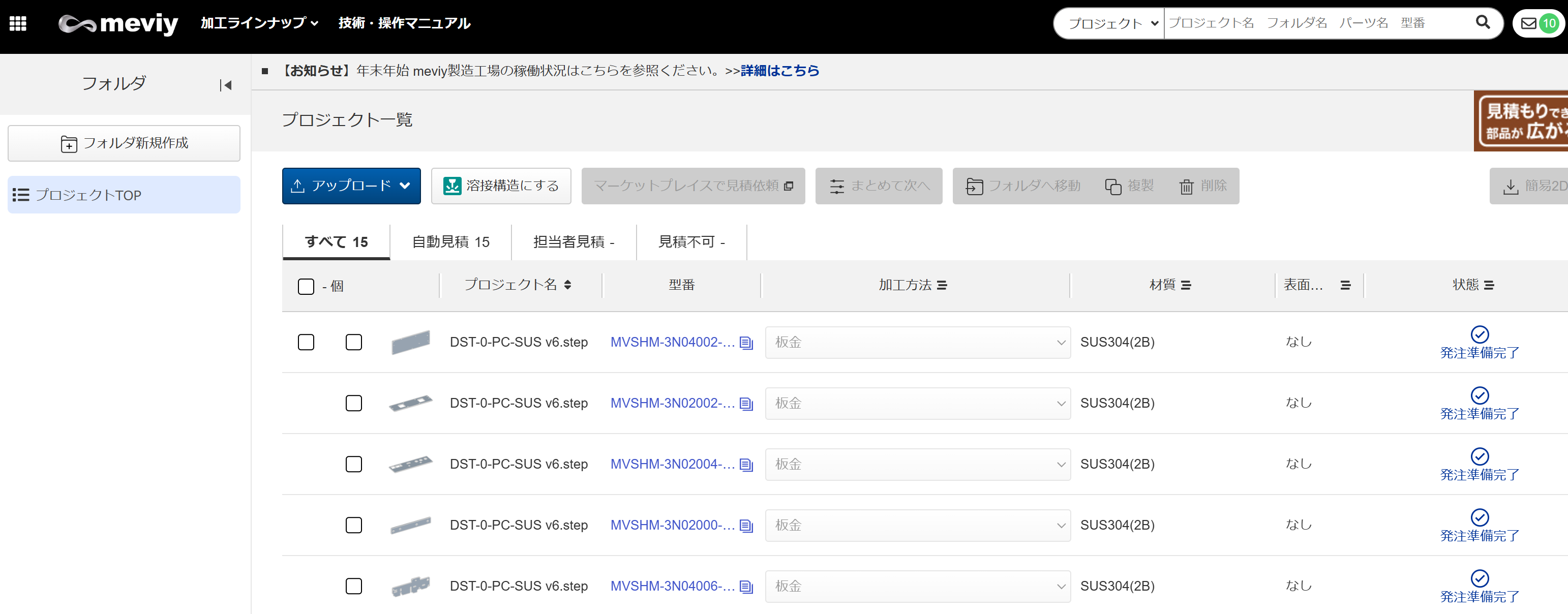

Sheet metal can pass the “MISUMI meviy” validation
