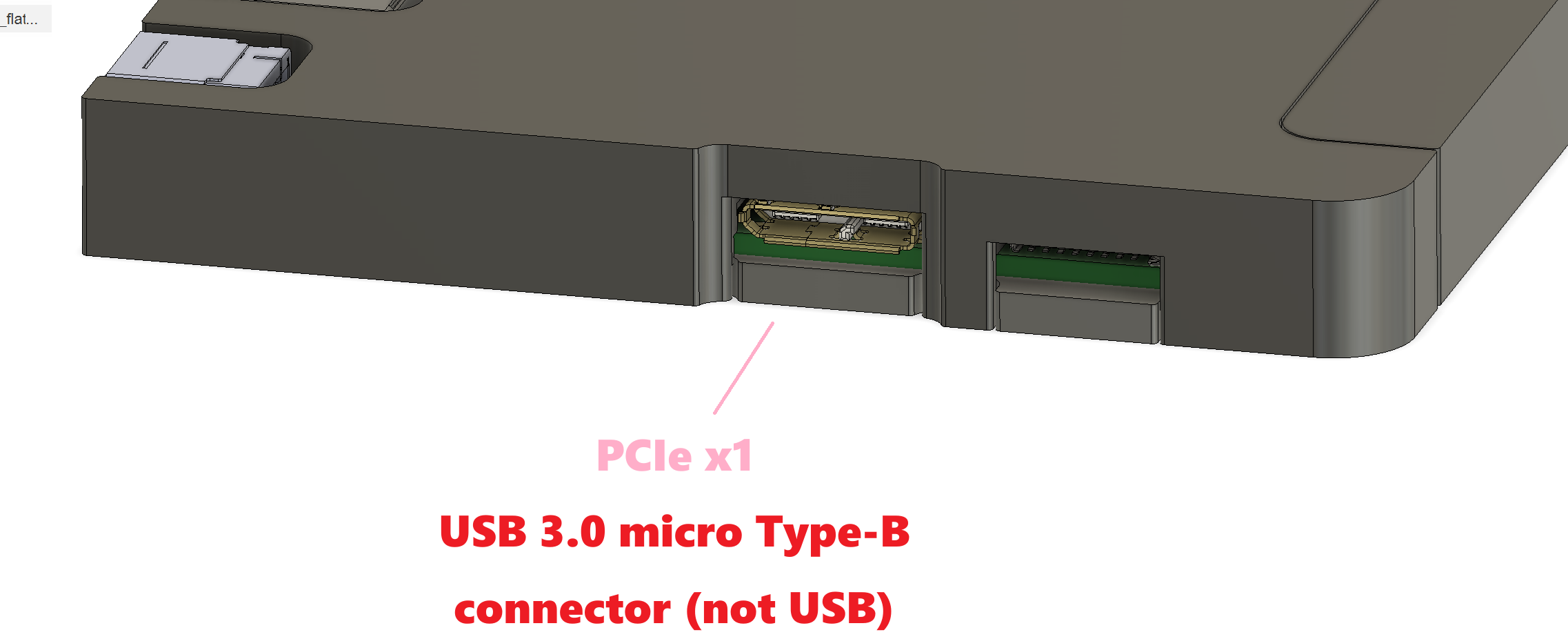

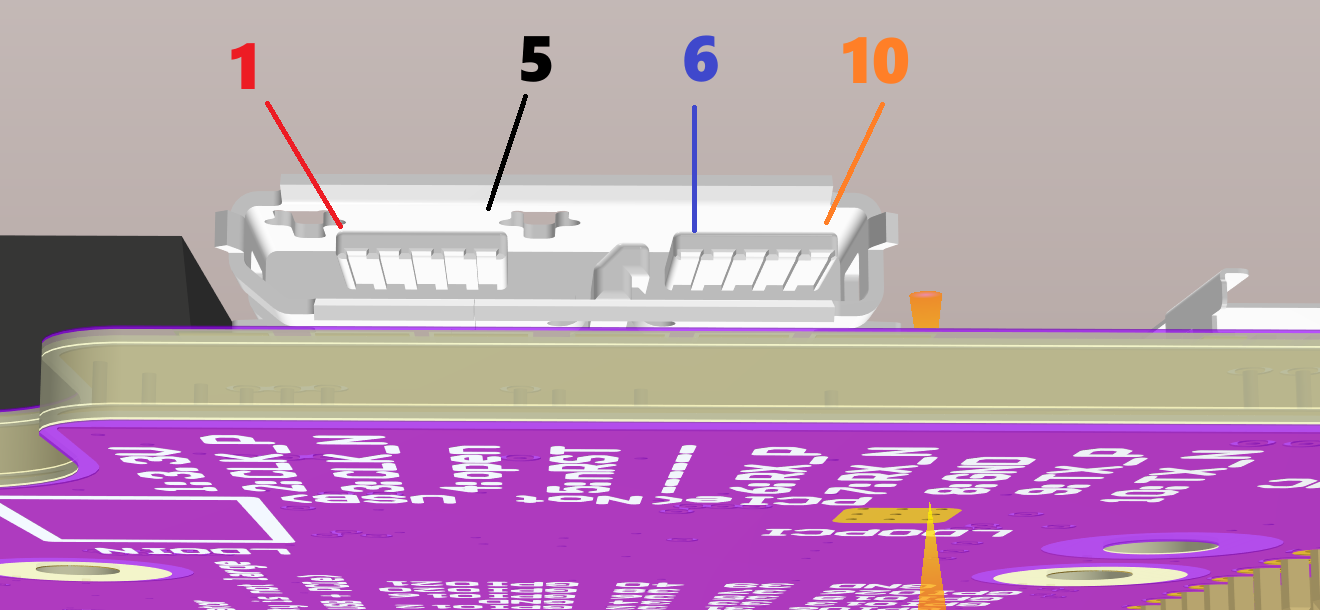

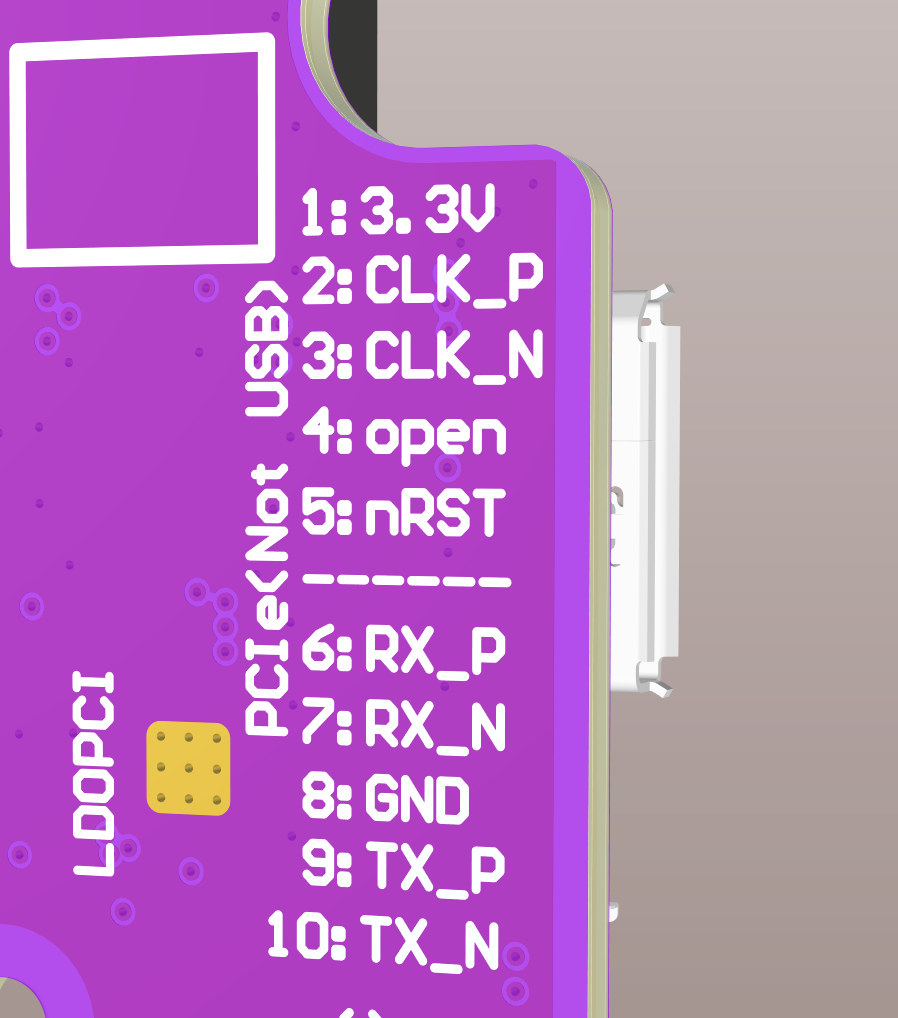

1:3.3V
2:CLK_P
3:CLK_N
4:open
5:nRST
------
6:RX_P
7:RX_N
8:GND
9:TX_P
10:TX_N

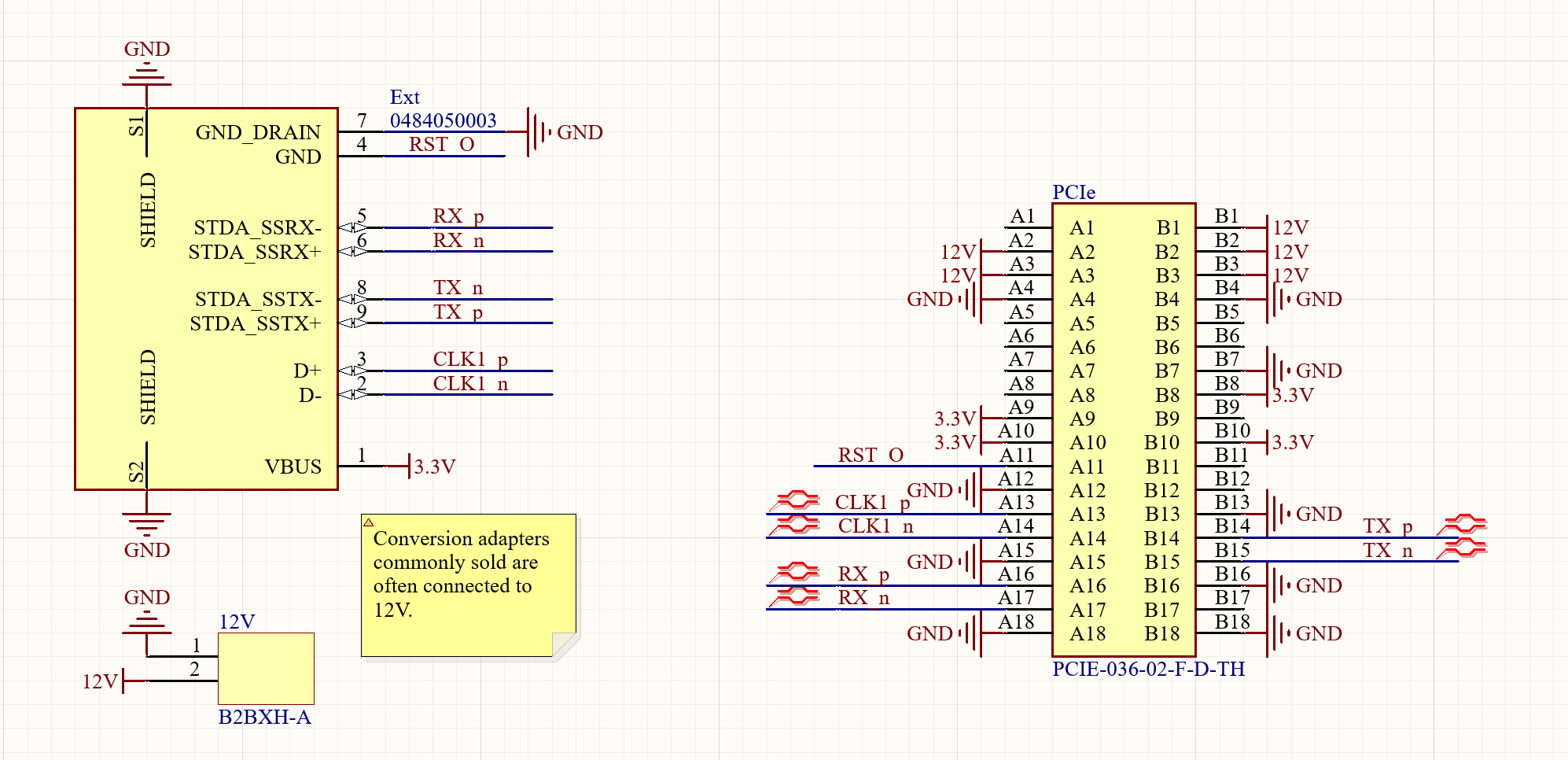

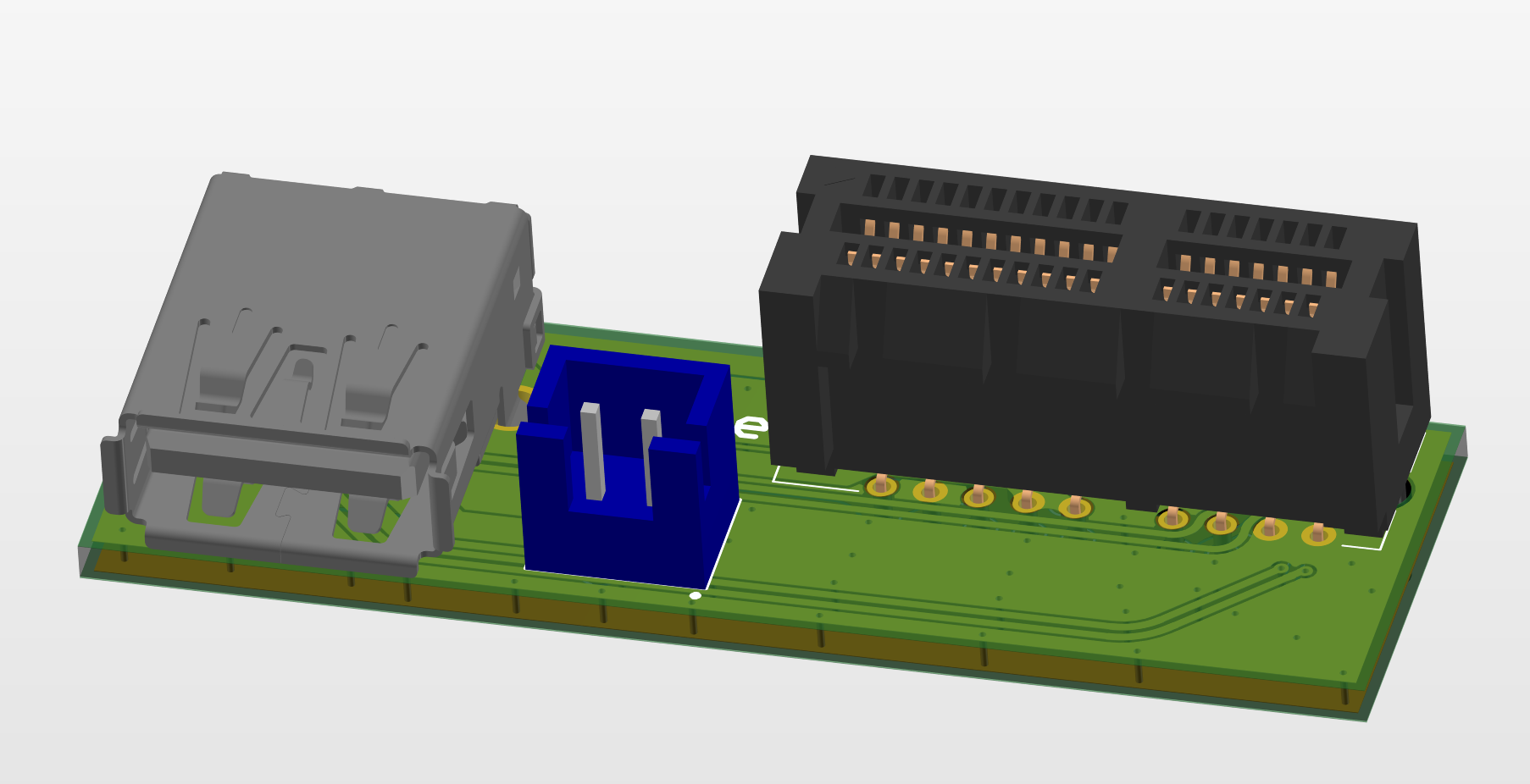

PCIe x1 Slot Converter
Please pay attention to the placement of 3.3V and 12V.
Modified on: Sun, 22 Jun, 2025 at 12:33 AM
1:3.3V
2:CLK_P
3:CLK_N
4:open
5:nRST
------
6:RX_P
7:RX_N
8:GND
9:TX_P
10:TX_N
PCIe x1 Slot Converter
Please pay attention to the placement of 3.3V and 12V.
